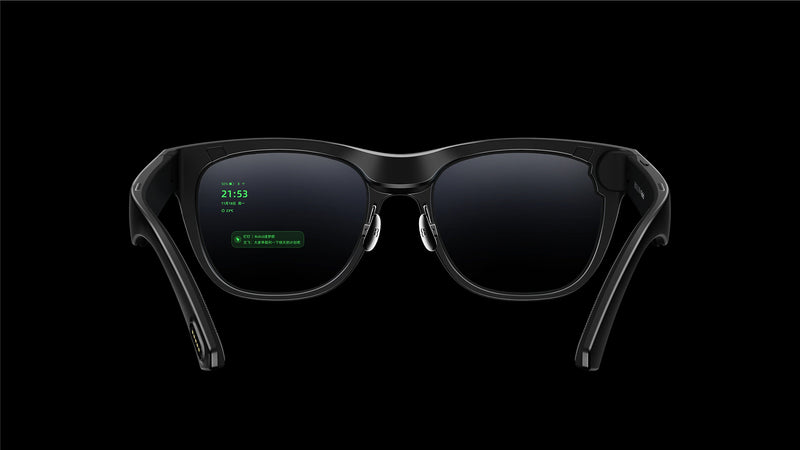

Meet Rokid Glasses

Rokid Glasses are display-equipped AI glasses for glanceable, hands-free information. The product combines a binocular Micro-LED waveguide display, voice interaction, camera input, open-ear audio, and the Hi Rokid companion app.

The experience is organized around short, task-specific overlays rather than a full spatial workspace. Translation text, teleprompter scripts, navigation prompts, AI responses, call information, and system status appear as concise green display elements in the wearer’s field of view.

Rokid Glasses weigh approximately 49g. The display specification is dual monochrome green Micro-LED, 480 x 640 per eye, up to 1,500 nits brightness, and a 30-degree field of view.

Rokid Glasses use the display for text-first information: prompts, subtitles, directions, scripts, and simple status cards. The main input methods are voice commands, touch gestures on the temple, physical buttons, and app-based controls in Hi Rokid.

The optical system uses a patented 'one engine, two outputs' diffractive waveguide architecture. A single Micro-LED optical engine projects light into a grating structure, which splits the image into two synchronized outputs for binocular viewing.

Single optical engine: one Micro-LED engine drives both display outputs.
Two synchronized outputs: the grating structure splits the projected image for binocular viewing.
Bridge placement: the optical engine sits in the bridge area, leaving temple space for other components.
Display target: the system is optimized for readable text, icons, and HUD-style prompts.

Capabilities

AI Voice Assistant — Wake-word and touch-triggered AI interaction, with model selection across supported AI services in the Hi Rokid App.

Real-Time Translation — Online translation powered by Microsoft Translator, plus six-language offline translation support. Translation text appears in the Micro-LED display.

AI Navigation — Turn-by-turn route prompts, distance information, and route overview where supported by the app, region, and software version.

AI Teleprompter — Script display for speaking scenarios, with smart-scroll that follows speaking pace through speech recognition

First-Person Camera — 12MP hands-free photo and video capture, including EIS-supported video recording and voice or button capture.

Calls and Notifications — Bluetooth 5.3 call handling, message notifications, reminders, and basic system alerts.

AI QuickNote — Voice note capture, transcription, and note management through the companion app workflow.

Glasses 1.3 What's Included

The package list is for contents verification before setup. Keep the list literal and avoid feature explanations here; fit, pairing, and charging instructions should remain in Get Started.

Package contents visual: product and included accessories.

Rokid Glasses: core device.
Magnetic charging cable: charges the glasses through the magnetic charging port.
User manual: safety information and basic setup reference.
Glasses case: daily storage and travel protection.
Cleaning cloth: cleans the lenses, frame, and camera area.
Nose pads: fit adjustment and replacement support.
Arm supporting foam pad: additional temple-arm support where more fit stability is needed.

Driving With Rokid

Free Your Hands. Record Life

Multi-language translation

Photo & Video

App Download

Download the Hi Rokid App from the App Store or Google Play. The app is required for pairing, device settings, AI model selection, media management, translation settings, teleprompter script management, firmware updates, and supported service configuration.

Recommended operating systems: iOS 16.0 or later; Android 12 or later.

Connect to Your Devices

Rokid Glasses connect to smartphones through Bluetooth 5.3 and Wi-Fi 6. Pairing and device management are handled inside the Hi Rokid App.

Before You Begin

Install the Hi Rokid App.
Confirm that the phone meets the recommended OS requirement: iOS 16.0 or later, or Android 12 or later.
Charge the glasses before pairing.

Pair Your Glasses

Open the Hi Rokid App and register or log in.
Fold the right temple arm, then press the function button three times. The glasses enter pairing mode when the blue indicator blinks.
In the app, tap the plus icon to add a device, then select Rokid Glasses from the available device list.
Complete Bluetooth pairing inside the Hi Rokid App rather than from the phone’s system Bluetooth settings.

Note: On first power-on, the glasses automatically enter pairing mode. Follow the in-app instructions to complete setup.

LED Indicator Reference

Indicator	Status
Blue blinking	Bluetooth pairing mode
White blinking	Powering on
White breathing	Startup in progress
Green breathing	Charging
Steady green	Fully charged
White flash	Photo taken
Steady white	Camera in use

How to Wear & Adjust

Unfold the glasses and wear them as standard eyewear. A wear-detection sensor near the right temple hinge confirms that the glasses are being worn. If the display does not turn on or the touchpad is unresponsive, remove the glasses, fold the temple arms, and put them on again to re-trigger detection.

Fit and weight visual: 49g lightweight form factor.

Adjusting the Nose Pads

For image clarity, raise the glasses slightly if the bottom of the display appears soft or incomplete.
For comfort, adjust the memory-metal nose pads inward or outward to match the bridge of the nose.
For reduced shadowing, position the glasses higher if a dark area appears in the upper field of view.
For active use, anti-slip sleeves can be added to the temple arms if the glasses slide down.

Prescription Lens Support

Rokid Glasses support magnetic prescription lens inserts. The insert aligns with inner frame notches and outer frame slots, then attaches magnetically between the waveguide lenses and the eyes. Inserts can support myopia, astigmatism, and progressive lenses through official or third-party optical channels.
Care & Cleaning
Clean lenses with a dry microfiber cloth after use.
Use a cotton swab lightly dampened with 70% isopropyl alcohol for the frame and nose pads.
Power off the glasses before cleaning.
Do not spray cleaning liquid directly onto the lenses.

Button & Touch Controls

Rokid Glasses combine physical buttons, touch input, and voice commands.

Control	Action
Function button	Press three times to enter Bluetooth pairing mode.
Touchpad swipe	Move between cards, widgets, or selectable items.
Single tap	Select or confirm.
Double tap	Go back or exit the current view.
Long press	Activate the AI assistant without using the wake word.
Shutter button	Trigger photo capture or camera-related actions, depending on mode.

AI Teleprompter

AI Teleprompter displays prepared scripts in the glasses for presentations, speeches, recordings, livestreams, and meeting talking points. The display acts as a private reference layer: the script remains visible to the wearer without adding a phone, laptop, or external teleprompter to the speaking setup.

Smart-scroll uses speech recognition to align the script with the speaker’s pace. When speech slows down, the text slows down; when speech speeds up, the text advances accordingly. This keeps the article focused on setup, script preparation, display behavior, and live-use checks.

How to Use

Open the Hi Rokid App.
Create, paste, or upload the script content.
Select teleprompter mode and confirm the display settings.
Start the session. Script text appears in the Micro-LED display.
Begin speaking. Smart-scroll adjusts the text movement based on speech pace.

Real-Time Translation

Real-Time Translation displays translated speech as live text in the Micro-LED waveguide display. The feature is structured for face-to-face conversations where the wearer needs to read translated content while keeping attention on the speaker and surrounding context.

Online translation is powered by Microsoft Translator, support across 89 languages . Offline translation is supported for six languages: English, Chinese, Japanese, French, German, and Spanish. Actual availability may vary by region, firmware version, app version, and network condition.

How to Use

Wear and connect Rokid Glasses through the Hi Rokid App.
Start translation by voice command or from the translation entry in the Hi Rokid App.
Select the source and target languages.
Begin the conversation. The microphone array captures speech, and translated text appears in the display.
Adjust translation settings in the app when a different language pair, offline mode, or output behavior is required.

Display Behavior

Translated text appears as a green text overlay in the wearer’s field of view.
The layout should use short lines and readable text size, avoiding unnecessary obstruction of the central sightline.
For the web page, pair the written guide with a first-person conversation visual so users can understand where subtitles appear.

Video / visual asset: first-person conversation scene with bilingual subtitles displayed in the lower visual field.

AI Navigation

AI Navigation presents route guidance as a heads-up overlay in the Micro-LED display. The feature is designed for glanceable directional information: turn prompts, distance to the next maneuver, street or route information, and route overview where supported.

Navigation requires phone connectivity and an active data connection. Feature availability, map provider, and supported travel modes may vary by region and app version.

How to Use

Connect Rokid Glasses to the Hi Rokid App.
Set a destination by voice command or inside the app.
Select the available travel mode, such as walking, cycling, or driving, where supported.
Follow the turn-by-turn prompts shown in the glasses display.
Use route overview or full-map mode when a broader view of the route is needed.

Display Behavior

Navigation information should sit in a low-obstruction area of the display.
The primary prompt should remain simple: direction, distance, and next action.
Secondary information such as estimated arrival time and map overview should not compete with the main route instruction.

Other AI Features

Rokid Glasses support AI interaction through the “Hi Rokid” wake word, touch activation, and supported gesture shortcuts. Model selection is managed in the Hi Rokid App, with supported options including Google Gemini, OpenAI ChatGPT, DeepSeek, and Qwen depending on region, app version, and service availability.

Wake-Up Methods

Voice wake-up: say “Hi Rokid” followed by the question or command.
Touch wake-up: long-press the touchpad, release, then speak directly.
Gesture wake-up: In the app's custom interaction guide, go to Trackpad > Two-finger interaction > Long press to enable the AI shortcut. You can also customize the shortcut, for example, set it to “Take a look at what's in front.”

What can you do

In the AI tips at the top‑right corner of the Assistant section in the app, you can also see many interesting AI commands.

Update Firmware

Firmware updates are managed through the Hi Rokid App. This page should read like an operational checklist: confirm the update conditions first, complete the update without interrupting power or connection, then verify the firmware version.

Before You Update

Connect the magnetic charging cable and keep the glasses connected to power throughout the update.
Connect the glasses to Wi-Fi through the Hi Rokid App when required for firmware download.
Keep the Hi Rokid App open and keep the phone within Bluetooth and Wi-Fi range.
Use a phone running iOS 16.0 or later, or Android 12 or later.

How to Update Glasses Firmware

Open the Hi Rokid App and confirm that Rokid Glasses are connected.
Go to Settings > Glasses System > Check for Updates.
If an update is available, review the update conditions shown in the pop-up window.
Tap Download. The package size and download time depend on the update and network speed.
Tap Install Now after the download completes.
Wait for installation to finish. The glasses may restart automatically during the process.
After reconnection, verify the firmware version in Settings > Glasses System > Firmware Version.

Important Notes

Do not disconnect power during the update.
Do not fold the glasses during installation.
Do not force restart the glasses while the update is running.
If the update fails, restart both the glasses and the Hi Rokid App, then try again under a stable Wi-Fi connection.

Magnetic Charging Cable

The magnetic charging cable attaches to the charging port at the end of the right temple arm. It uses a 3-pin magnetic connector and a USB-C power input. The cable supports fast charging, with approximately 80–90% battery available after about 20 minutes under supported charging conditions.

Connector type: 3-pin magnetic connector.
Charging port: USB-C.
Compatibility: Rokid Glasses; also compatible with Rokid Glasses Style.
Cable material: TPE.
Fast charging support: approximately 20 minutes to 80–90%.

Glasses Carrying Case

The carrying case provides daily storage and travel protection for Rokid Glasses and the charging cable.

Hard-shell exterior for impact protection.
Custom-fit interior for the glasses and charging cable.
Compact form factor for travel and daily carry.

Nose Pads

Rokid Glasses include air-cushion nose pads with a memory-metal core. The nose pads can be adjusted by hand for fit and display positioning.

Bendable adjustment without tools.
Replaceable with a small screwdriver.
Spare nose pads included in the box.

Charging Case

The charging case is a portable battery case for storing, protecting, and charging Rokid Glasses while traveling or working away from a power source.

You can purchase it anytime on our official website. →Purchase Here

Battery capacity: 3,000mAh; 3,150mAh variant in select regions.
Full charges for glasses: up to 10 times.
Charging port: USB-C.
Glasses charge time: approximately 20 minutes.
Finish: silver metallic.

Portable Charging Capsule

The portable charging capsule is a magnetic clip-on battery for extended use while wearing the glasses. The capsule attaches to the rear of the right temple arm and allows the glasses to remain functional during charging. You can purchase it directly from our official website.

→Purchase Here

Battery capacity: 1,700mAh per capsule.
Full charges per capsule: approximately 5 times.
Connection type: magnetic clip-on, 3-pin magnetic port.
Compatibility: Rokid Glasses; Rokid AI Glasses Style.
Charging dock: included for recharging capsules.

Tech Specs

Feature	Rokid Glasses
Weight	Approx. 49g
Display	Micro-LED, 1,500 nits brightness, 30° FOV
Processor	Snapdragon AR1 platform
Storage	2GB RAM + 32GB ROM
Camera	12MP
Microphones	4-microphone array, directional pickup
Bluetooth	Bluetooth 5.3
Protection	IPX4 splash-resistant
Battery life	Video recording approx. 45 min; music approx. 6 hrs
Charging	Approx. 20 min to 80–90%

Meet Rokid Ai Glasses Style

Rokid Ai Glasses Style are display-free AI glasses built around voice interaction, first-person capture, open-ear audio, and all-day wear. Unlike Rokid Glasses with a Micro-LED waveguide display, Style keeps the experience screen-free: information is delivered through audio, the Hi Rokid App, and AI-powered camera workflows.

The product is designed for users who want AI access in a form factor that feels close to everyday eyewear. The frame is approximately 38g, with a prescription-friendly design, open-ear speakers, a 12MP HD camera, and on-device interaction through voice, touch, and head gestures.

Under the hood, Style uses a dual-chip architecture: a low-power chip handles always-on sensing and wake-word detection, while the Qualcomm AR1 platform supports AI inference and camera processing. This split architecture is intended to balance responsiveness, power efficiency, and daily usability.

Capabilities

AI Voice Assistant — Voice interaction for Q&A, device commands, and contextual assistance. Supported AI services may include Gemini, ChatGPT, DeepSeek, and Qwen depending on region and app configuration.

Real-Time Translation — Voice-first translation for cross-language conversations. Translation output is delivered through open-ear audio rather than an in-lens display.

First-Person Camera — 12MP camera for hands-free photo and video capture, including EIS-supported recording and voice or button-triggered capture.

AI Object Recognition — Camera-assisted AI understanding for objects, scenes, signs, products, and text in the wearer’s environment.

Open-Ear Audio — Directional speakers deliver calls, music, AI responses, and translation audio while keeping ambient awareness.

Gesture & Touch Controls — Touch input and head gestures support daily actions such as triggering AI, answering calls, and ending calls.

AI QuickNote and Audio Transcription — Voice memos, meeting notes, and spoken content can be captured and organized through the app workflow.

What's Included

Use this page for package verification before setup. Keep the content literal, with setup and daily-use instructions handled in Get Started.

Rokid Glasses Style
Magnetic charging cable
Carrying case
Microfiber cleaning cloth
Spare nose pads
Quick start guide and safety booklet

Demo Videos

Hands-Free-Navigation

A Day at the Theme Park

App Download

Download the Hi Rokid App from the App Store or Google Play. The app is required for pairing, AI model settings, media management, translation settings, firmware updates, and device configuration.

Recommended operating systems: iOS 16.0 or later; Android 12 or later.
